Ocean Terminal EV Hub

Project Scope

Development of a 6-charger Electric Vehicle Hub in Edinburgh including:

• 6x Raption 160kW chargers (de-rated to 150kW)

• Civil engineering foundations, ducting, and access chambers

• LV/HV distribution with transformer, RMU, and LV switchboard (Schneider 2500A)

• Integrated lighting and CCTV solutions

• Two accessible parking bays and pedestrian pathways

Our Solution

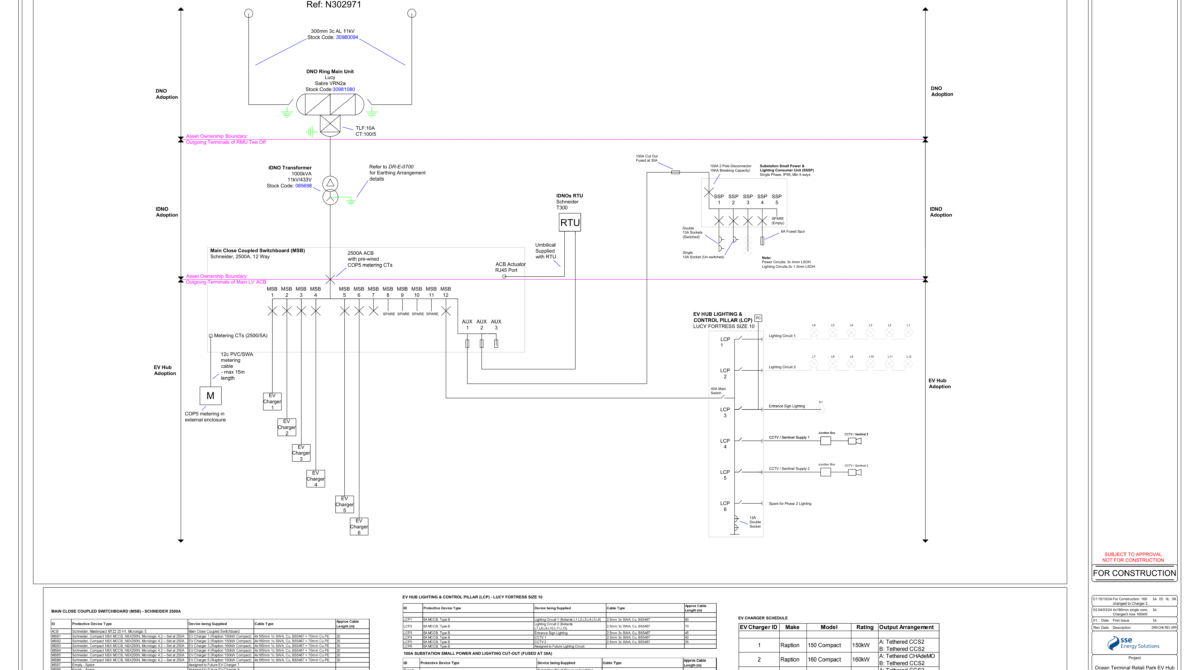

• HV POC: 11kV feed from SPEN
• 1000kVA 11kV/433V transformer and LV switchboard
• Direct feeds to chargers and lighting control pillars
• Civil modifications around a Scottish Water asset

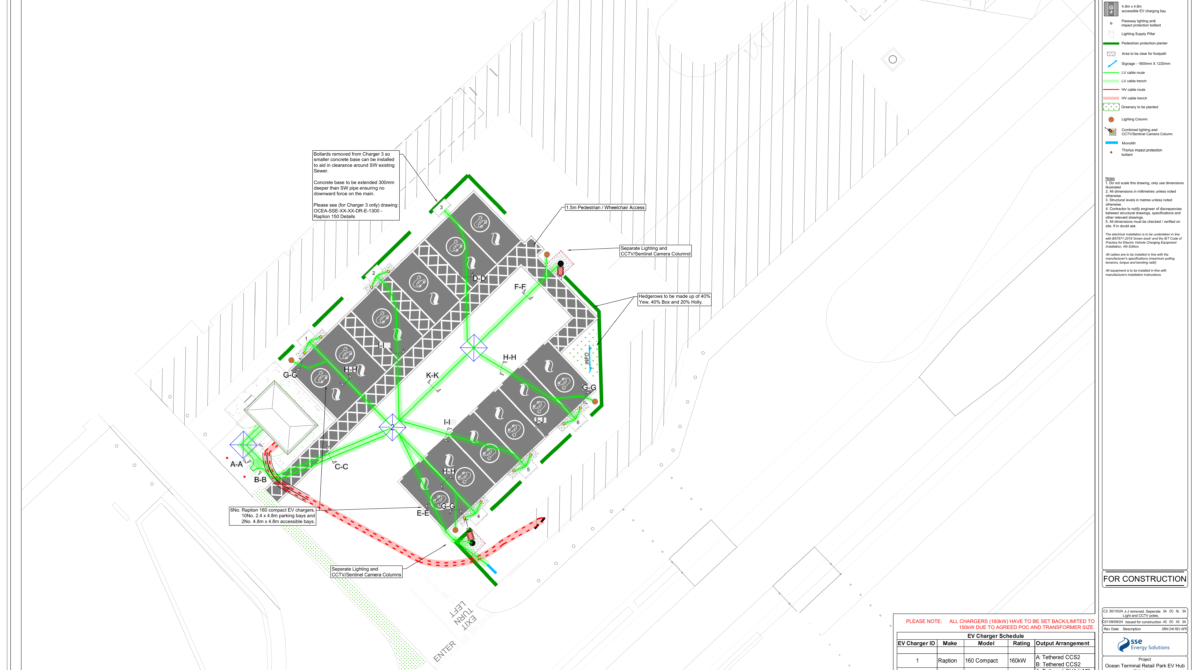

• Accessible layout with integrated GRP substation and LV kiosk

Benefits to Our Client

• Safe and code-compliant installation aligned with BS7671:2018 & IET EV CoP 4th Edition
• Turnkey solution
• Future scalability is built into the electrical distribution
• Improved accessibility and customer-friendly charging hub

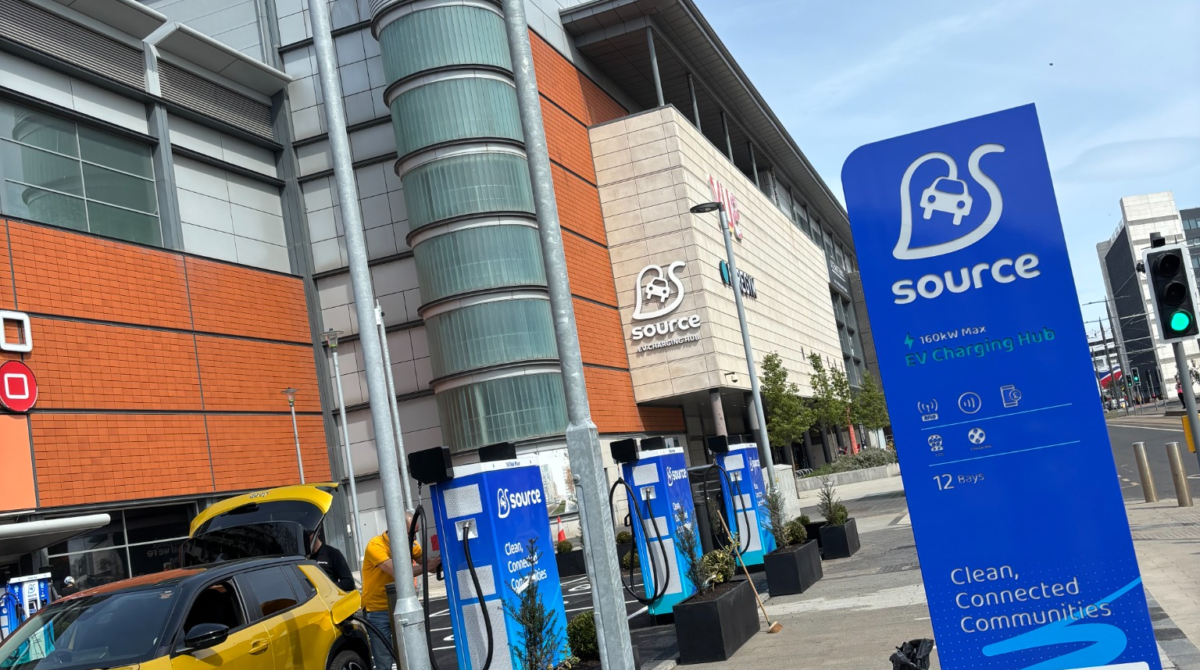

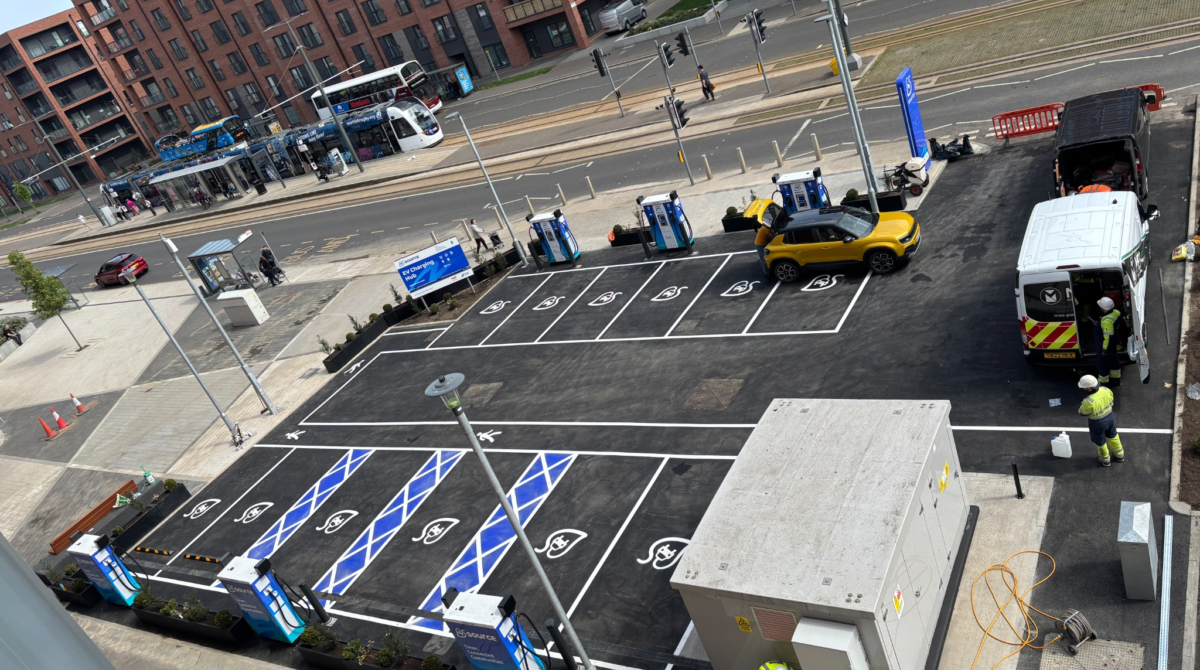

Case Study Gallery
